Iridium Based MMO Coated Titanium Anode Mesh Gr1 Gr2

Model Number : HH-ANODE

Certification : ISO9001-2015

Place of Origin : China

MOQ : 1 square meter

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 ROLLS PER 30 DAYS

Delivery Time : within 7 work days

Packaging Details : Water-proof, plastic paper, wooden case, pallet

Name : Iridium-based MMO Coated Titanium Anode

Material : Gr1, Gr2 titanium

Temperature range : <60 ℃

Apply Current : <15000A

Oxygen evolution potential : <1.45V

Precious metal content : 15-40g / m2

Coating Thickness : 15-40g / m2

Shape : plates, tubes, nets, rods, wires, machined parts

Contact Now

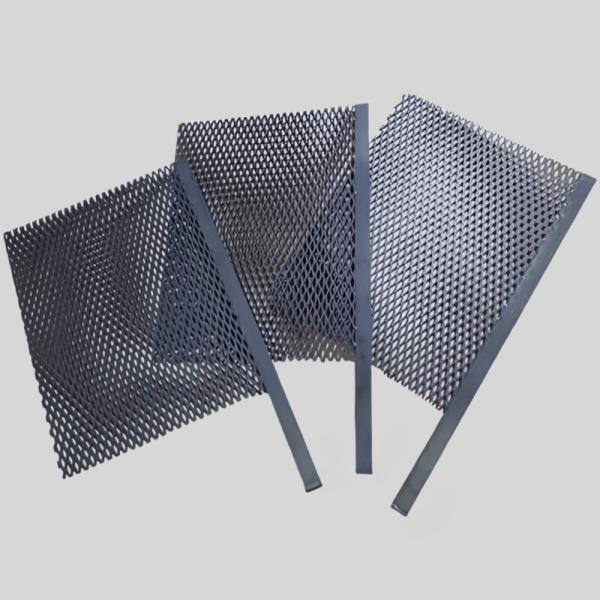

Iridium-based MMO Coated Titanium Anode Mesh

Iridium-based MMO coated titanium anodes are a type of insoluble anode, which are coated with an iridium oxide layer on a titanium substrate using a special process. This coating endows the anode with excellent electrocatalytic activity and conductivity. In electrochemical reactions, based on the classification by gas evolution, iridium-based MMO coated titanium anodes are categorized as oxygen-evolving anodes, suitable for environments where oxygen evolution is desired.

Parameter of Iridium-Based MMO Coated Titanium Anode Mesh

Coating material	IrO2 + Ta2O5 + X
Base metal	Gr1, Gr2 titanium
Temperature range	<60 ℃
Apply Current	<15000A
Oxygen evolution potential	＜1.45V
Fluoride content	<50mg / L
Precious metal content	15-40g / m2
Coating thickness	8-15μm
PH value	1-12
Enhanced life	300 H-400H
Titanium anode shapes	plates, tubes, nets, rods, wires, machined parts

Base Material: Pure titanium in Gr1 or Gr2;
Coating: Iridium tantalum
Coating Thickness 10~40 μm or custom;
Shape: Plate, mesh, rod or custom;
Life span: 2-5 years;

Features of Iridium-Based MMO Coated Titanium Anode Mesh

Lower cell voltage and overpotential;
Stable in performance and dimension;
Strong catalytic activity;
High corrosion resistance;
Long service life;
Tailor-made service is available.

Application of Iridium-Based MMO Coated Titanium Anode Mesh

Seawater Desalination
Electro Chlorination;
Cooling water anti-biofouling;
Electrodialysis;
Seawater electrolysis;
Salt pool chlorinators;
